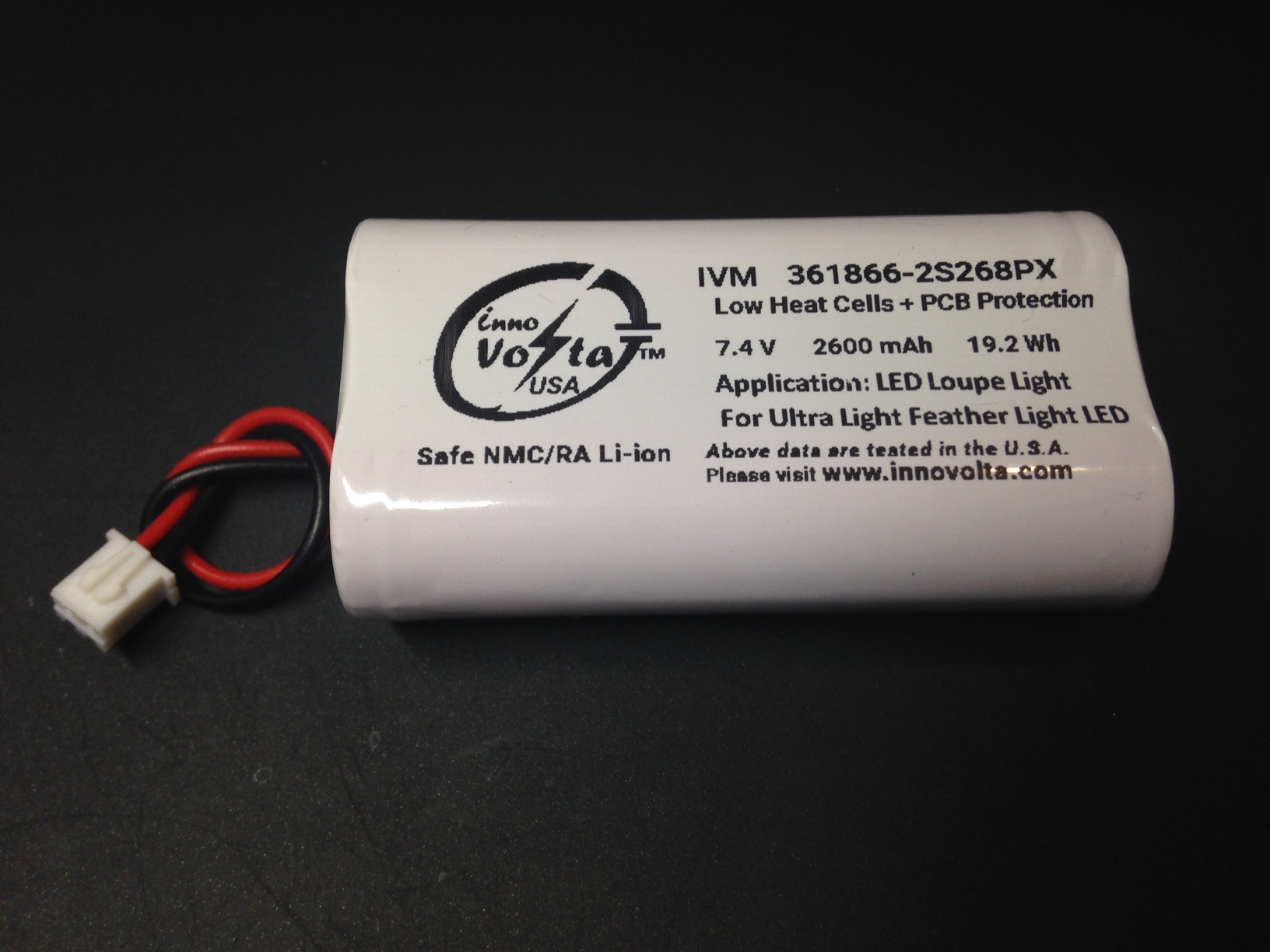

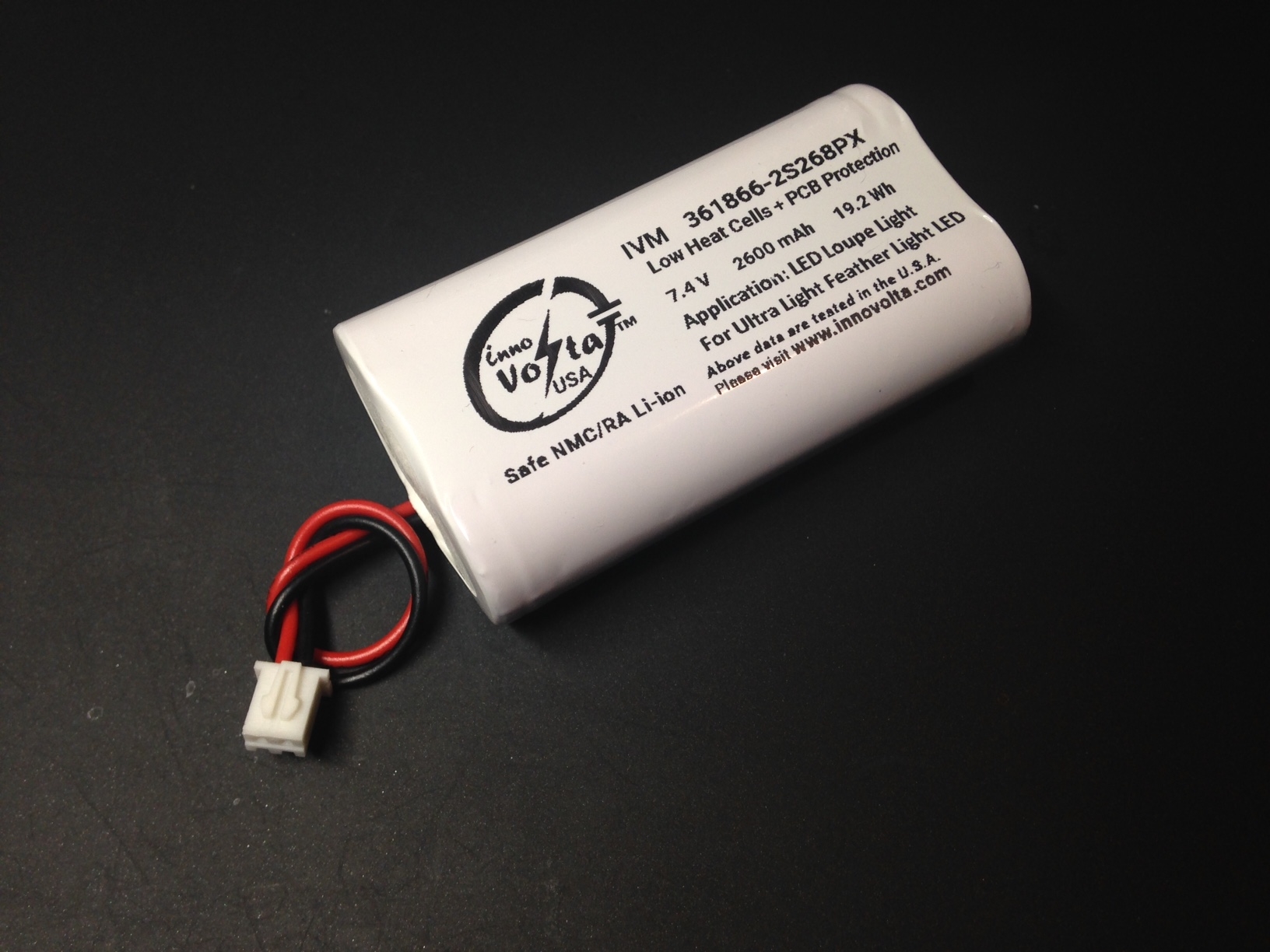

Battery Replacement Feather Light Loupe Light Battery Pack by innoVolta IVM361866-2S268PX Made in USA

Applications:

Replacement Battery for Ultra Light Optics Feather Light Battery Pack

Meet Highly Safe Medical Industrial Requirements:

Selected Medical Grade, LOW-HEAT, NMC Power Cells
In-Cell Construction by Thermal Runaway Safer Material up to 210 Degree C
Individual Cell Carries UL 1642 and RoHS Certificates
Build-in Reinforced Insulation between Cells
Build-in Industrial Grade PCM (Protections: Short Circuit, Over-Charge, Over-Discharge)
Never worry about an explosion owing to an accidental short circuit or a human mishandling

High Performance:

7.4 V 2,600 mAh
Short Circuit Protection Current (up to 8 A)

Ultra Long Life:

Real-Time Tested Cycle Life (individual cells): Over 1,000 Deep Cycles
Excellent Cell Matching ACIR @1 kHz < 2 mOhm/bin
Excellent Cell Matching Capacity < 20 mAh/bin

Convenience:

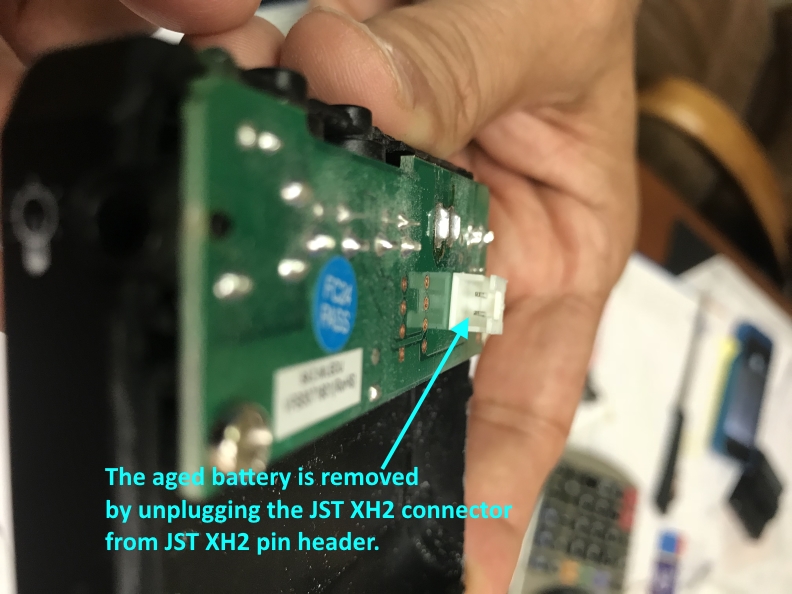

Assembled with 2.5 mm pitch 2-circuit JST XH2 connector
Avoiding any accidental inverse polarity of power connection because JST XH2 connector is polarized.
3.2″ long flexible wires rated UL 1007, 22AWG, 80 degC, 300V, VW-1

Categories: Custom Batteries for Various Applictions, Medical Replacement Batteries Tags: Replacement Battery, SurgiTel, Eclipse battery pack EHL65, Odyssey Analog, 7.4V 2600mAh, Li-Ion, Battery, Feather Light LED

Description
Additional information

Description

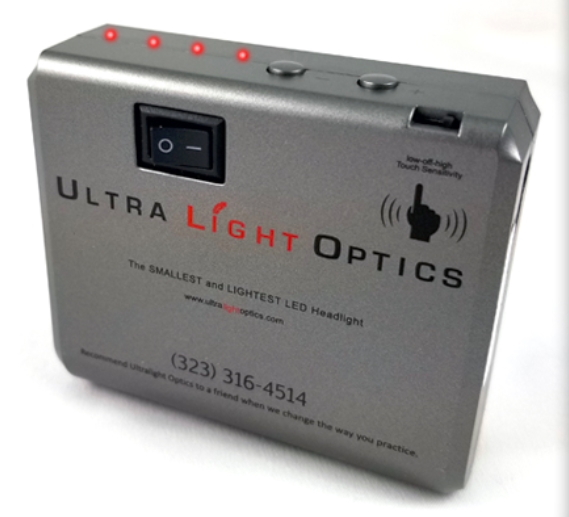

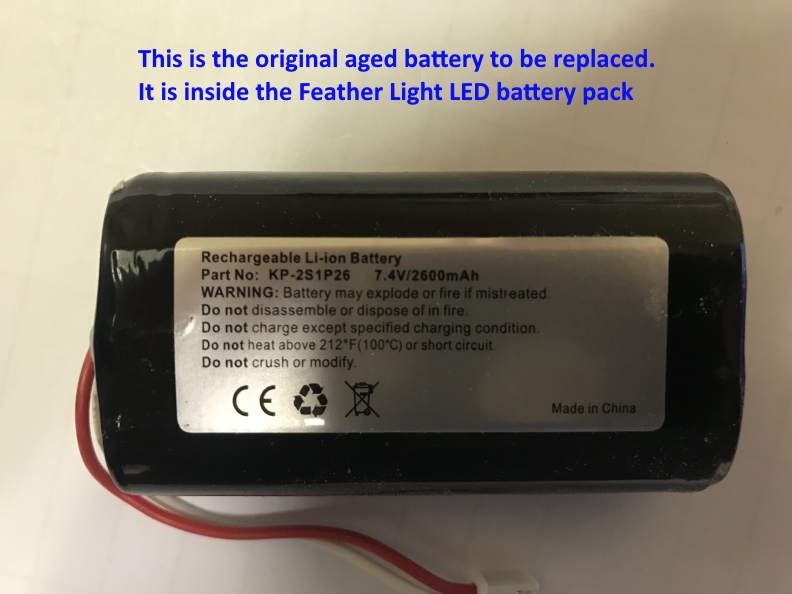

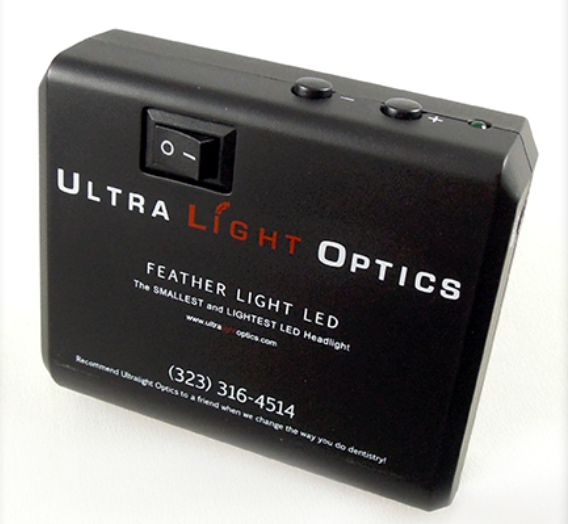

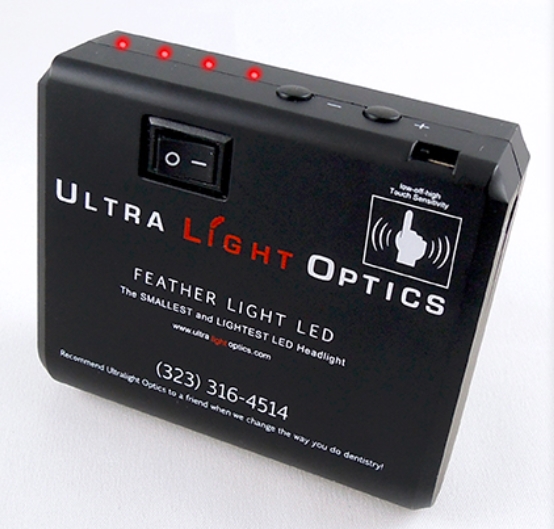

This is the battery replacement pack dedicated to replace the aged original battery for Feather Light LED Loupe Headlight (Feather Light Battery Pack)

Note: There are two variations of Feather Light battery pack. Please double check your connector and wiring polarity, as we currently support only one of the two variations, at this time. If you have Feather Light with a different connector/polarity, please get in touch with us with close up photos of your connector. Thank you!

Note: The original battery is rated as 7.4 V 2,600 mAh

If your unit is SurgiTel Eclipse EHL65 battery pack for SurgiTel micro LED, please visit

https://www.innovolta.com/product/battery-replacement-surgitel-eclipse-battery-pack-ehl65-by-innovolta-ivm361866-2s26cpm-made-in-usa/

Please contact us if you own a different Loupe Headlight and can’t find a compatible battery for replacement!

To know about innoVolta’s product capability, please visit

https://www.innovolta.com/about-us/

Specifications

Brand: innoVolta USA
Standard Model: IVM361866-2S268PX
Capacity: 2,600 mAh
Energy: 19.2 Wh
Nominal Voltage: 7.4 V
Charge Current: 1.3 A (Standard)
Short Circuit Protection Current: up to 8 A
Battery Pack Size (maximum): 37.0 mm Wide * 19.5 mm High * 66.5 mm Long
Weight: 91.7 g (average)
Connector: 2.5 mm pitch 2-circuit JST XH2 connector
Wire: Red/Black, 3.2″ long, UL 1007, 22AWG, 80 degC, 300V, VW-1
