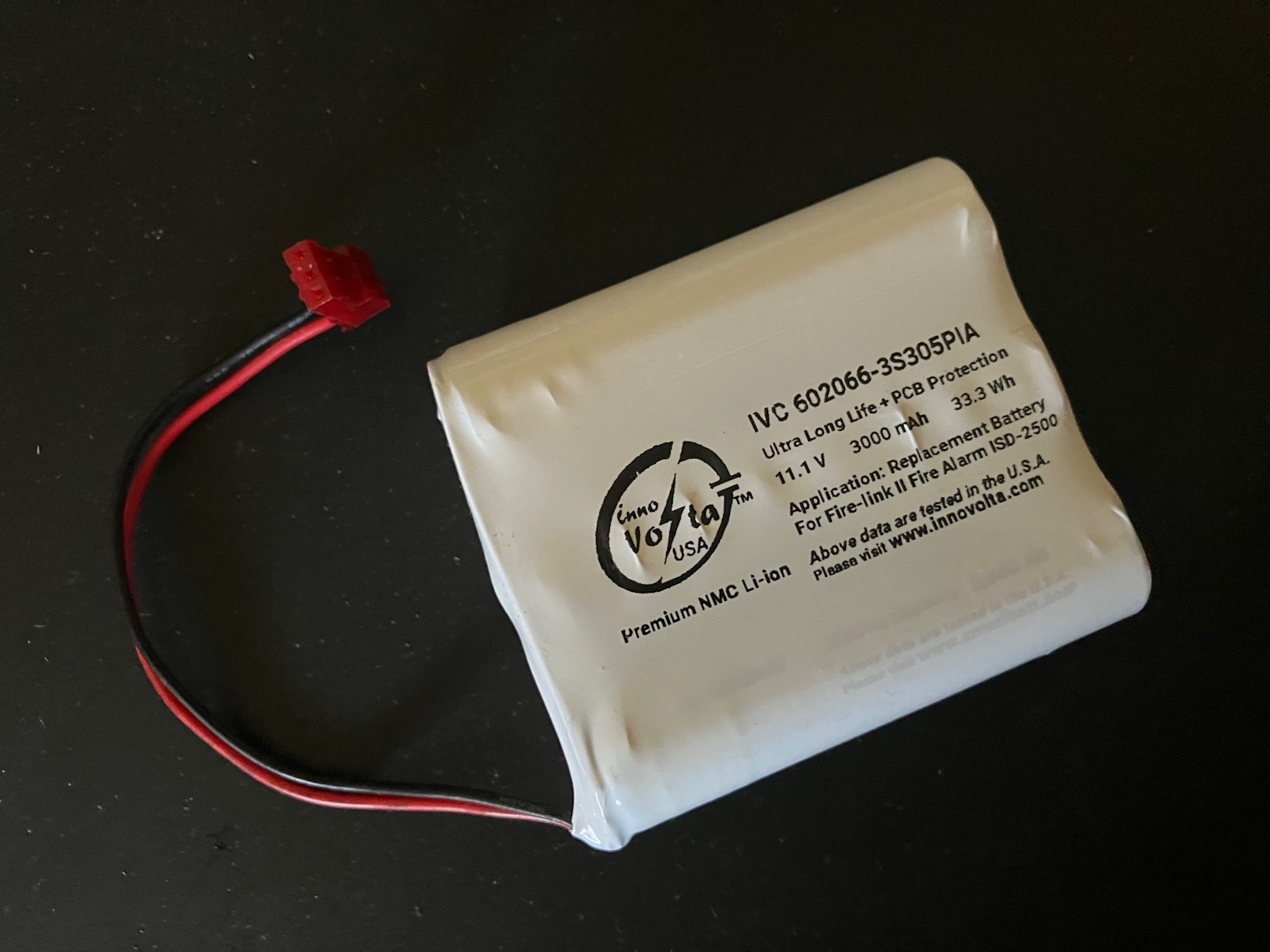

Battery Replacement for SIGNALINK Fire-Link II Fire Alarm by innoVolta IVC602066-3S305PIA Made in USA

Applications:

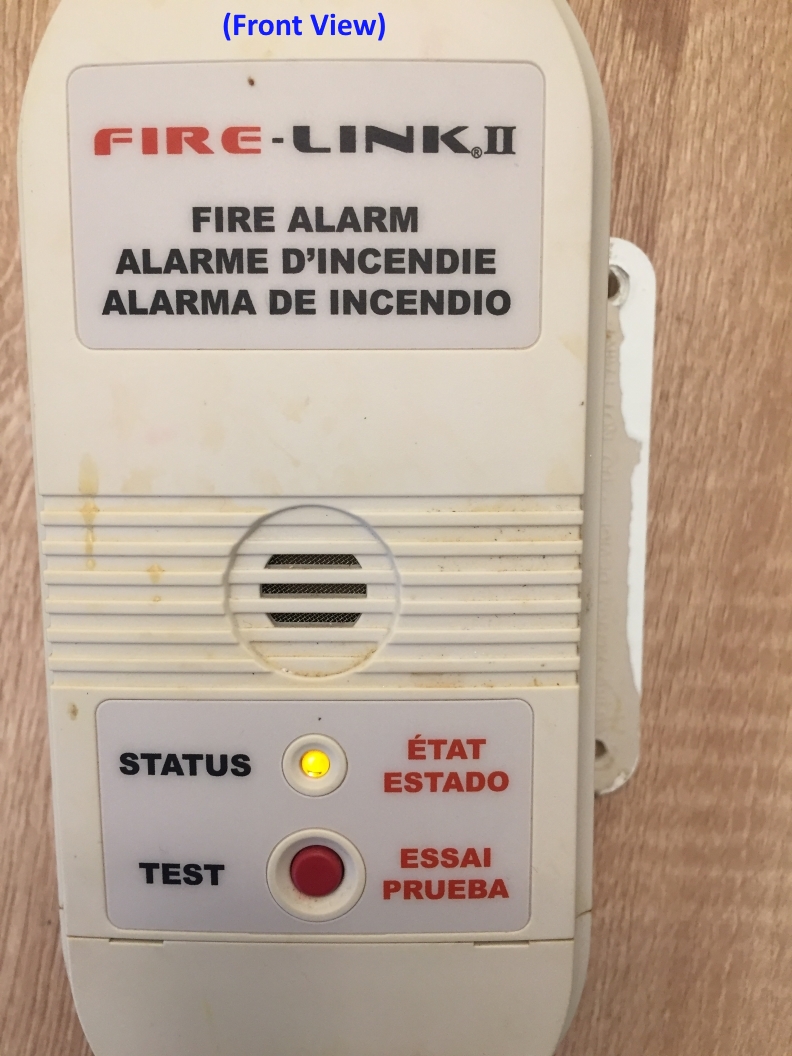

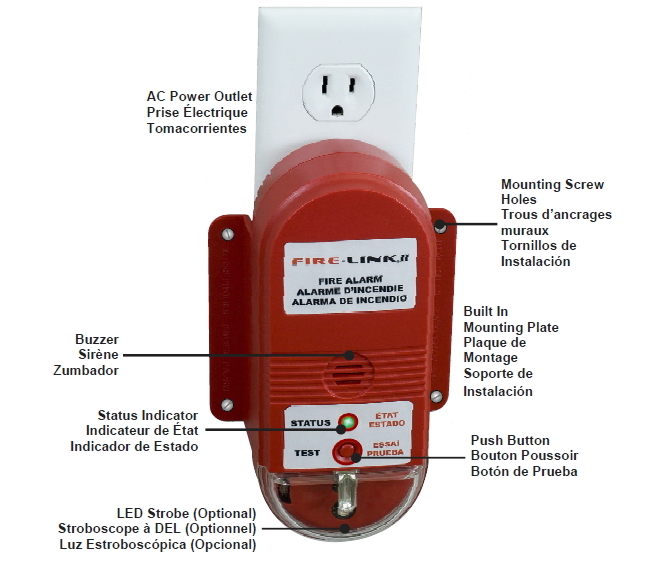

• Replacement Battery for SIGNALINK Fire-Link II Fire Alarm

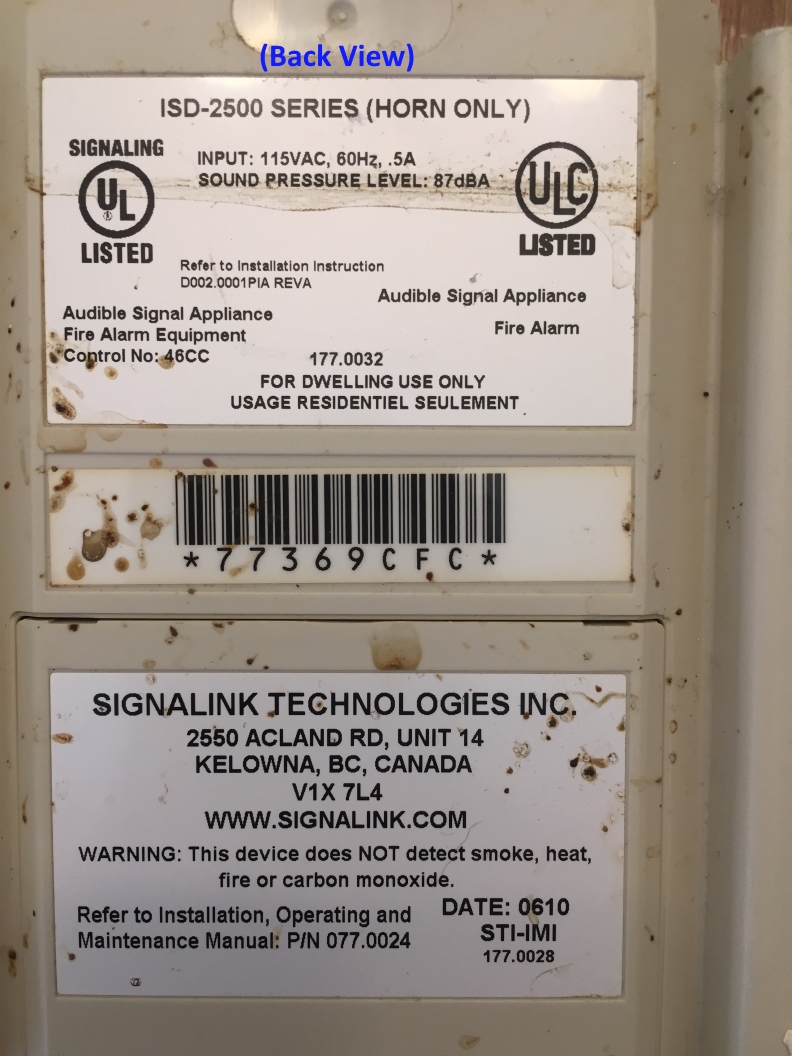

• ISD-2500 Series (Horn Only) or ISD-2500 Series (Horn + LED Strobe)
• Advanced 20650 Power Cells Boost Capacity to 3,000 mAh

Meet Mandated Security Industrial Requirements:

• Selected Security Industrial Grade, Ultra Long Life, NMC Power Cells
• In-Cell Construction by Thermal Runaway Safer Material up to 210 Degree C
• Individual Cell Carries UL 1642 and RoHS Certificates
• Build-in Reinforced Insulation between Cells
• Build-in Industrial Grade PCM (Protections: Short Circuit, Over-Charge, Over-Discharge)
• Never worry about an explosion owing to an accidental short circuit or a human mishandling

High Performance:

• 11.1 V 3,000 mAh
• Short Circuit Protection Current (up to 5 A)

Ultra Long Life:

• Real-Time Tested Cycle Life (individual cells): Over 1,000 Deep Cycles
• Excellent Cell Matching ACIR @1 kHz < 2 mOhm/bin
• Excellent Cell Matching Capacity < 20 mAh/bin

Convenience:

• Assembled with 2.5 mm pitch 2-circuit AMP 3-640440-3 connector
• Avoiding any accidental inverse polarity of power connection because AMP 3-640440-3 connector is polarized.
• 5″ long flexible wires rated UL 1007, 22AWG, 80 degC, 300V, VW-1

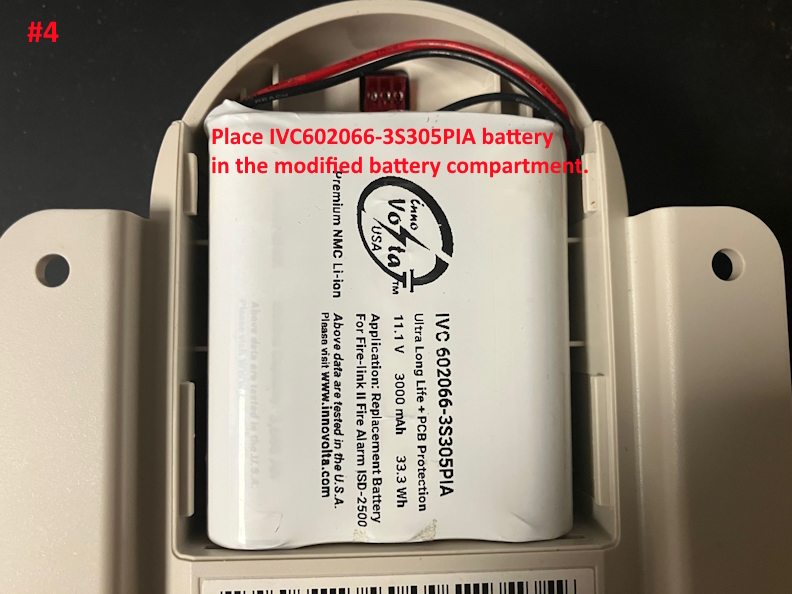

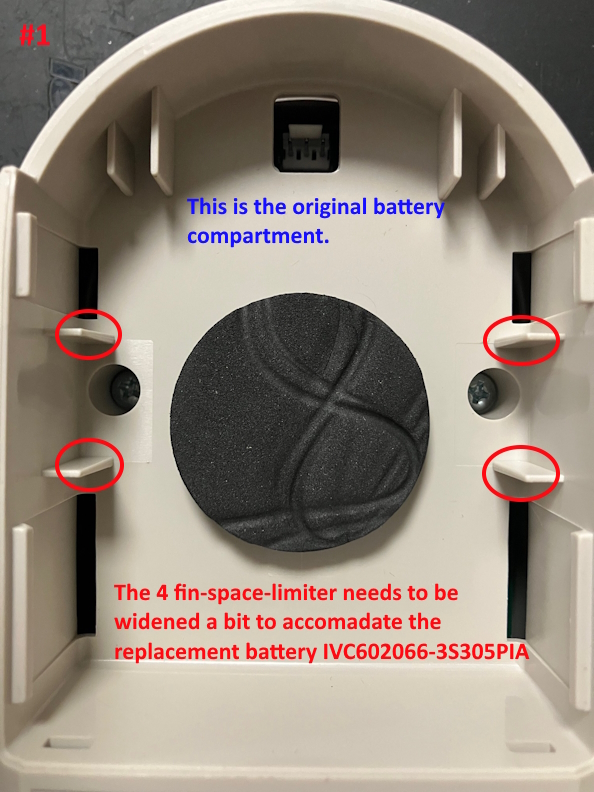

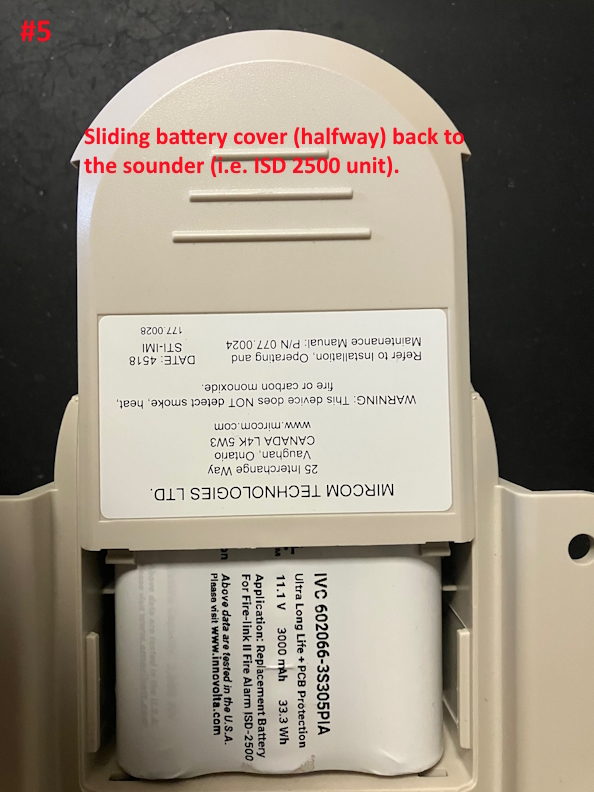

Battery Replacement Guide:

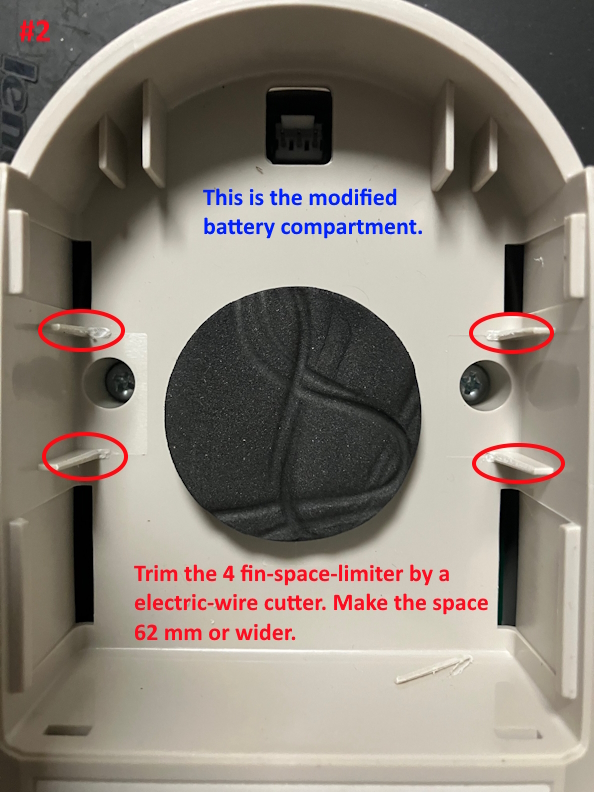

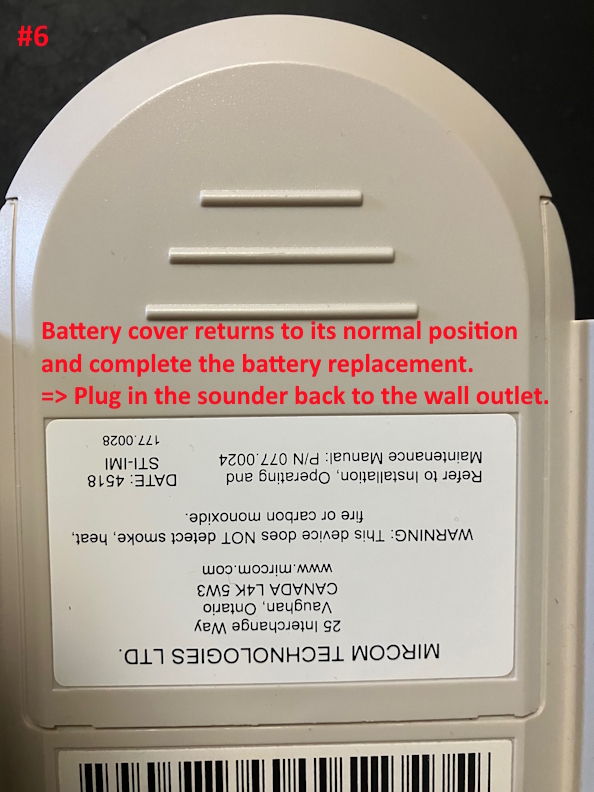

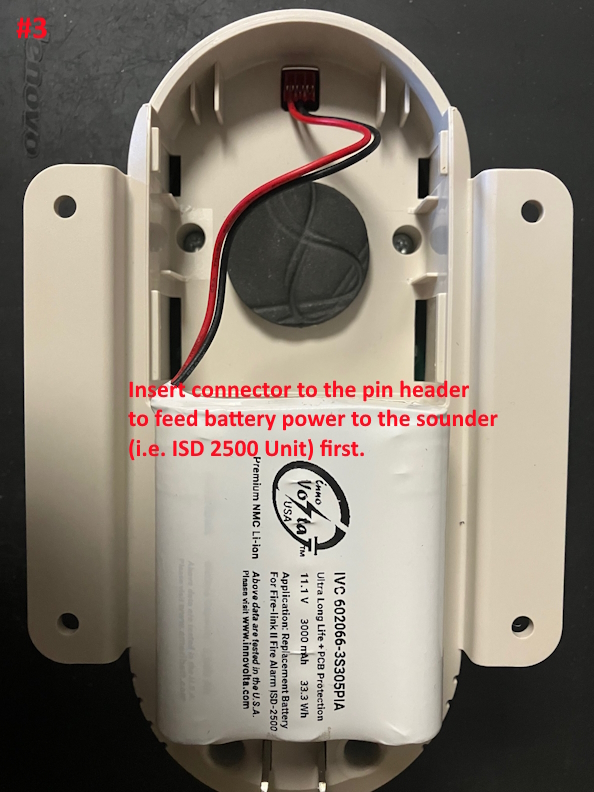

Please refer to the #1 ~ #6 self-explanatory pictures in the photo gallery.
