IVC363466-3S22BPT
IVC363466-3S22BPT
Upgrade Battery for 40W iLoud Speaker (Single)

Battery Replacement IK Multimedia iLoud Speaker by innoVolta Battery Made in USA

Applications:

  • Replacement Battery for IK Multimedia Bluetooth iLoud Speaker

Meet Consumer Industrial Requirements:

  • Selected EV Grade, LOW IR, NMC Power Cells
  • In-Cell Construction by Thermal Runaway Safer Material up to 210 Degree C
  • Individual Cell Carries UL 1642 and RoHS Certificates
  • Build-in Reinforced Insulation between Cells
  • Build-in Industrial Grade PCM (Protections: Short Circuit, Over-Charge, Over-Discharge)
  • Never worry about an explosion owing to an accidental short circuit or a human mishandling

High Performance:

  • 11.1 V 2,200 mAh (100% Run Time), or
  • 11.1 V 3,000 mAh (136% Run Time)
  • Short Circuit Protection Current (up to 12 A)

Ultra Long Life:

  • Real-Time Tested Cycle Life (individual cells): Over 1,000 Deep Cycles
  • Excellent Cell Matching ACIR @1 kHz < 2 mOhm/bin
  • Excellent Cell Matching Capacity < 20 mAh/bin

Convenience:

  • Assembled with 2.5 mm pitch JST XH-2 connector
  • Avoiding any accidental inverse polarity of power connection because JST XH-2 connector is polarized.
  • 3.0″ long flexible wires rated UL 1007, 22AWG, 80 degC, 300V, VW-1
Categories: , Tags: , , , , , ,

Description

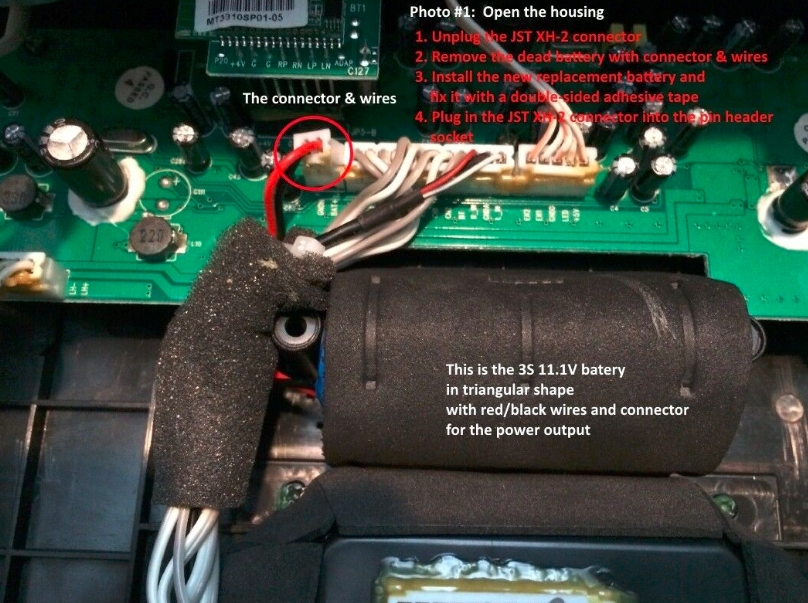

This is the custom battery pack dedicated to replace or upgrade the aged original battery for IK Multimedia Bluetooth iLoud Speaker.

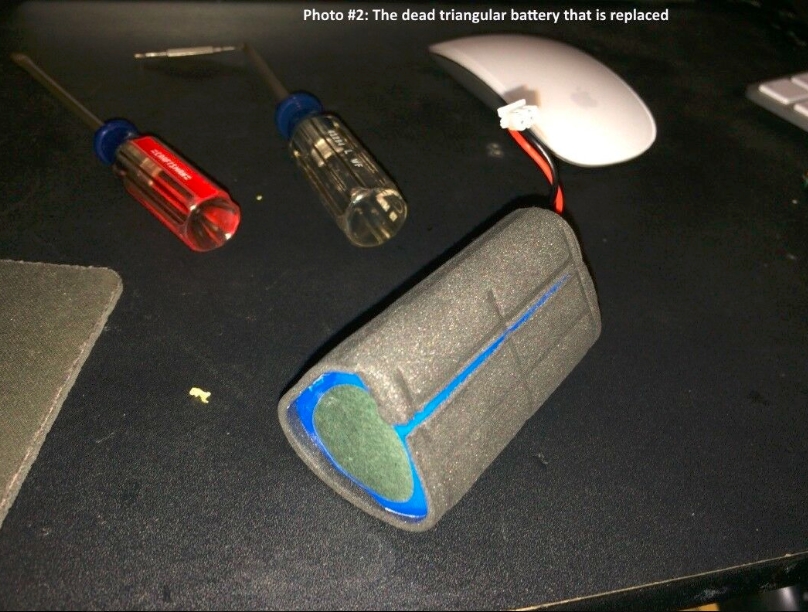

Note: The original battery is rated as 11.1 V 2,200 mAh

Please contact us if you own a different Bluetooth Speaker and can’t find a compatible battery for replacement!

To know about innoVolta’s product capability, please visit

https://www.innovolta.com/about-us/

Specifications

  • Brand: innoVolta USA

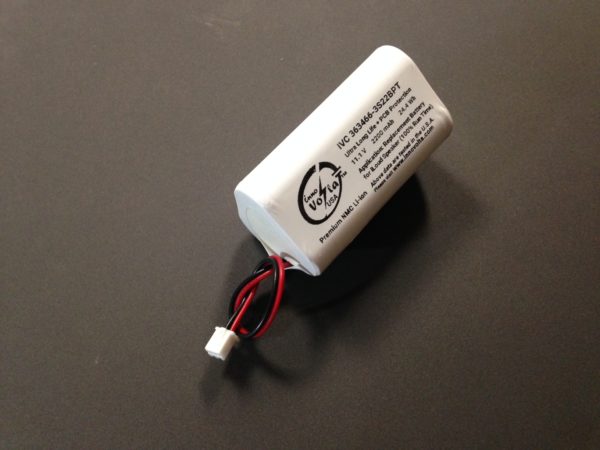

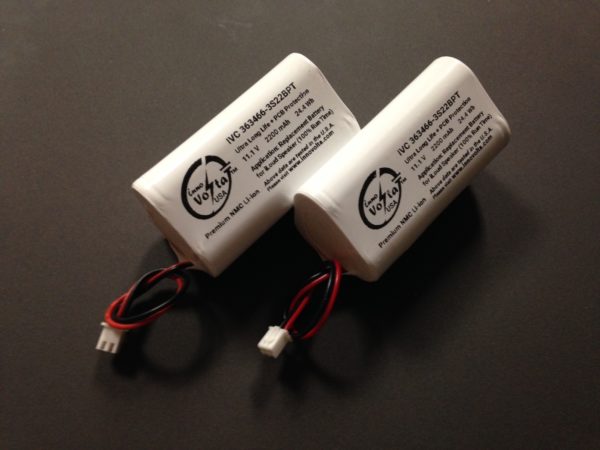

  • Standard Model: IVC363466-3S22BPT (100% Run Time)

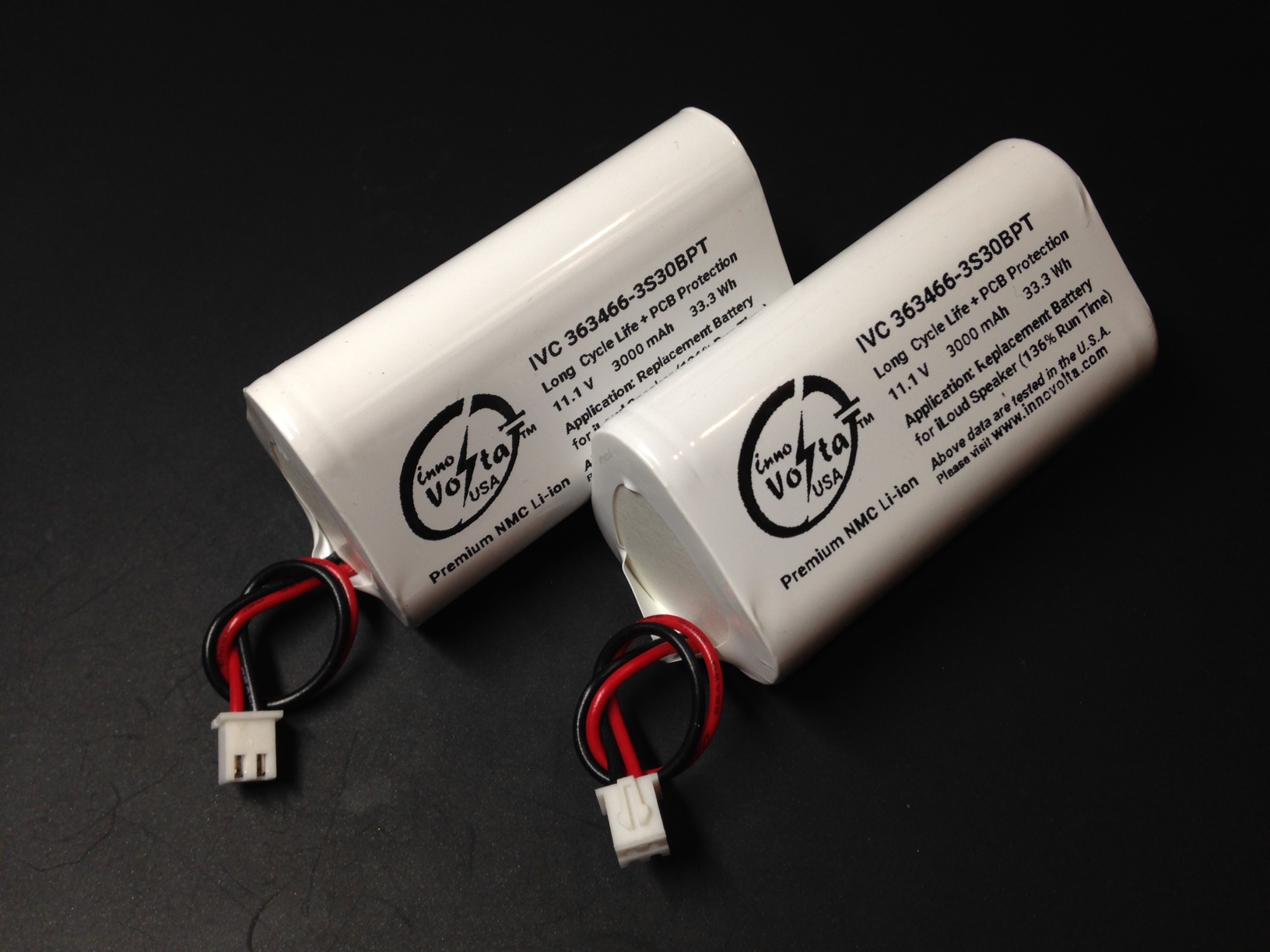

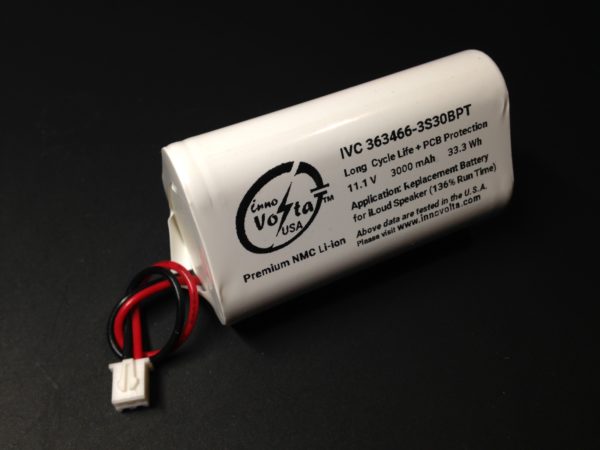

  • Upgrade Model: IVC363466-3S30BPT (136% Run Time)
  • Capacity: 2,200 mAh (Standard) or 3,000 mAh (Upgrade)
  • Energy: 24.4 Wh (Standard) or 33.3 Wh (Upgrade)
  • Nominal Voltage: 11.1 V
  • Charge Current: 1.1 A (Standard) or 1.5 A (Upgrade)
  • Short Circuit Protection Current: up to 12 A
  • Battery Pack Size (maximum): 37.0 mm Wide * 38.5 mm High * 67.0 mm Long
  • Weight: 138 g (average)
  • Connector: 2.5 mm pitch 2-circuit JST XH-2
  • Wire: Red/Black, 3″ long, UL 1007,  22AWG, 80 degC, 300V, VW-1
