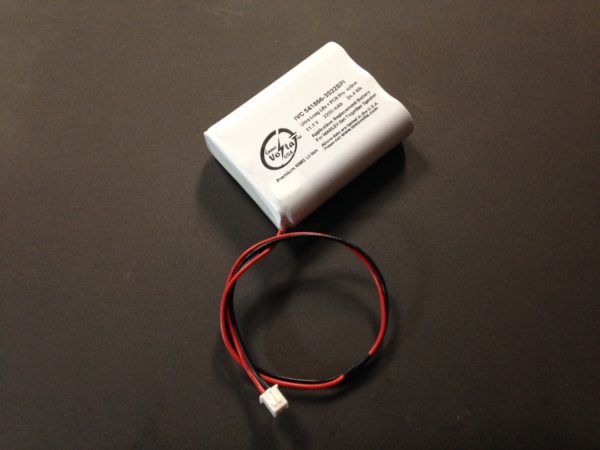

IVC541866-3S22BPI

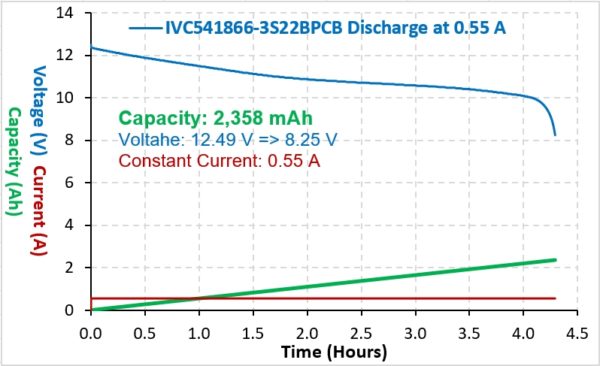

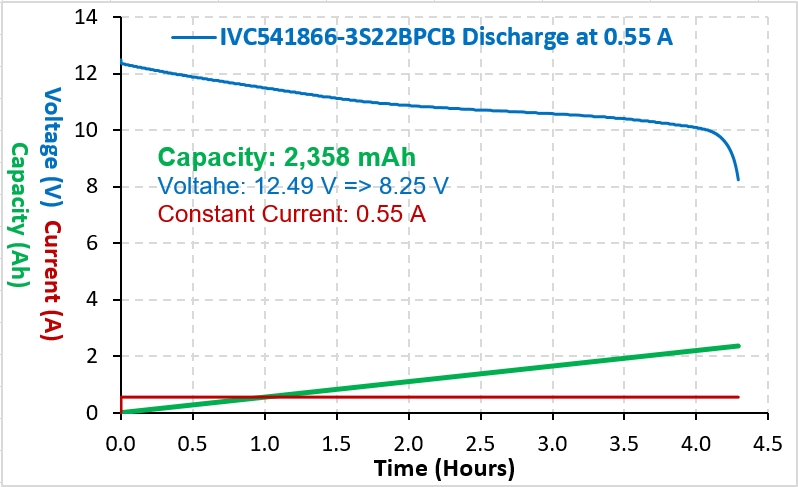

IVC541866-3S22BPCB Discharge Curve

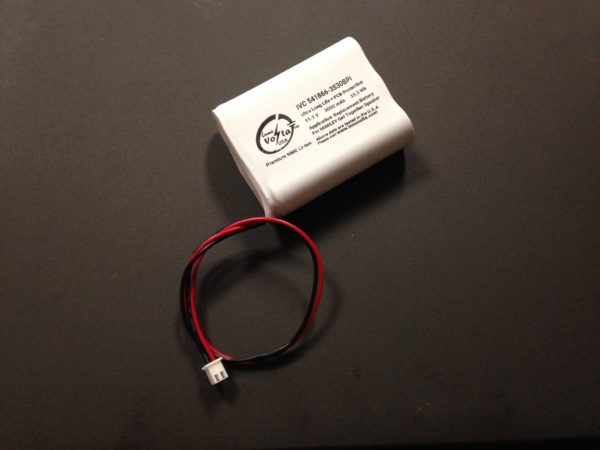

IVC541866-3S30BPI

Battery Replacement Marley Get Together Speaker by innoVolta Battery Made in USA

Applications:

  • Replacement Battery for Marley GetTogether Bluetooth Speaker
  • 100% compatible with Model: EM-JA006-MI or EM-JA006BH

Meet Consumer Industrial Requirements:

  • Selected EV Grade, LOW IR, NMC Power Cells
  • In-Cell Construction by Thermal Runaway Safer Material up to 210 Degree C
  • Individual Cell Carries UL 1642 and RoHS Certificates
  • Build-in Reinforced Insulation between Cells
  • Build-in Industrial Grade PCM (Protections: Short Circuit, Over-Charge, Over-Discharge)
  • Never worry about an explosion owing to an accidental short circuit or a human mishandling

High Performance:

  • 11.1 V 2,200 mAh (122% Run Time), or
  • 11.1 V 2,500 mAh (138% Run Time), or
  • 11.1 V 3,000 mAh (167% Run Time)
  • Short Circuit Protection Current (up to 12 A)

Ultra Long Life:

  • Real-Time Tested Cycle Life (individual cells): Over 1,000 Deep Cycles
  • Excellent Cell Matching ACIR @1 kHz < 2 mOhm/bin
  • Excellent Cell Matching Capacity < 20 mAh/bin

Convenience:

  • Assembled with 2.5 mm pitch JST XH-2 connector
  • Avoiding any accidental inverse polarity of power connection because JST XH-2 connector is polarized.
  • Red/Black flexible wires rated UL 1007, 22AWG, 80 degC, 300V, VW-1
Categories: , Tags: , , , ,

Description

This is the custom battery dedicated to upgrade the aged original battery with longer play time for MARLEY GET TOGETHER Bluetooth Speaker.

Note: The original battery is rated as 11.1 V 1,800 mAh

Please contact us if you own a different Bluetooth Speaker and can’t find a compatible battery for replacement!

To know about innoVolta’s product capability, please visit

https://www.innovolta.com/about-us/

Specifications

  • Brand: innoVolta USA
  • Basic Model: IVC541866-3S22BPI (122% Run Time)

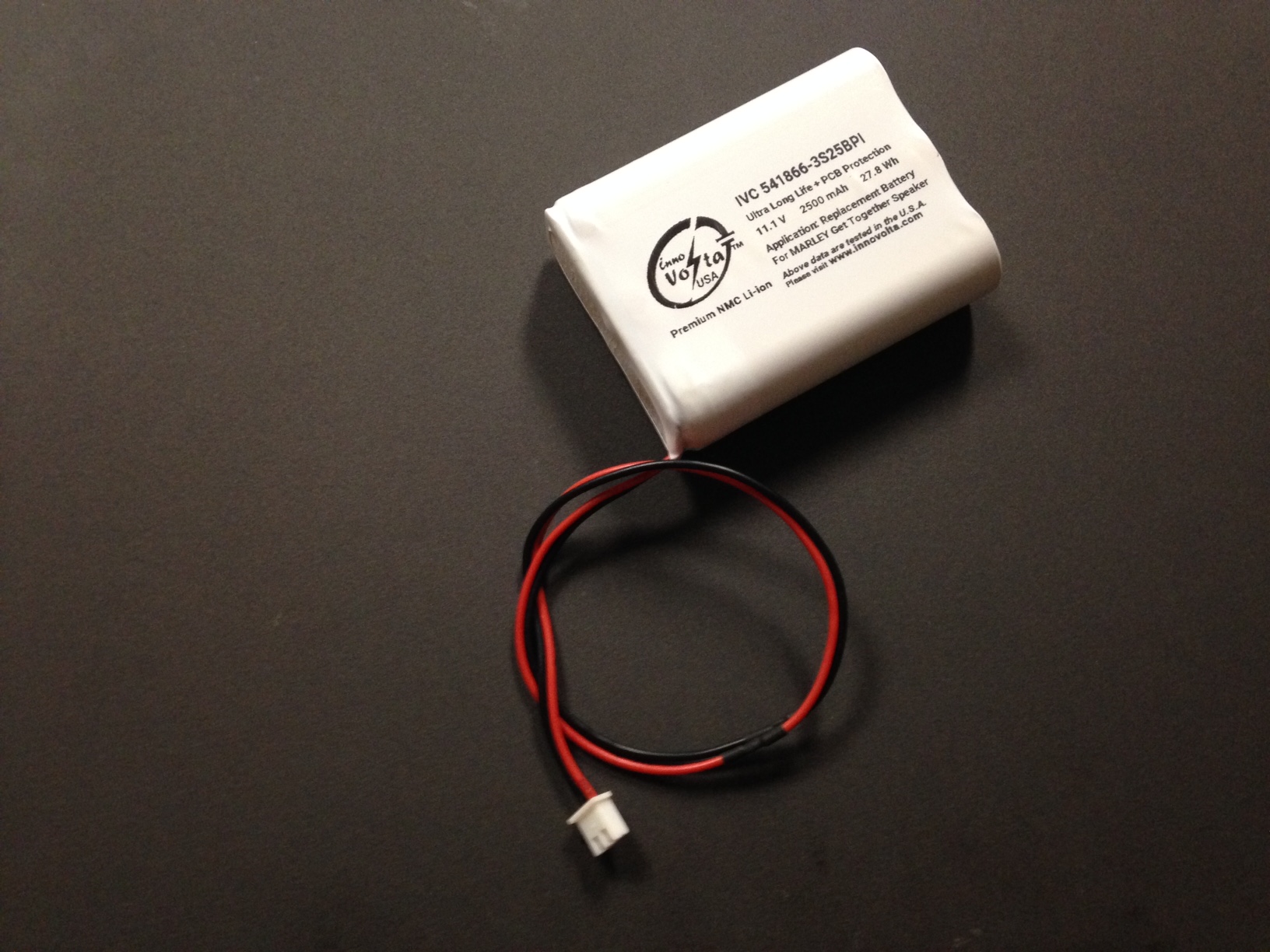

  • Upgrade Model: IVC541866-3S25BPI (138% Run Time)
  • Upgrade Model: IVC541866-3S30BPI (167% Run Time)
  • Capacity: 2,200 mAh (Basic) or 2,500 mAh (138% Upgrade) or 3,000 mAh (167% Upgrade)
  • Energy: 24.4 Wh (Basic) or 27.8 Wh (138% Upgrade) or 33.3 Wh (167% Upgrade)
  • Nominal Voltage: 11.1 V
  • Charge Current: 1.1 A (Basic) or 1.3 A (138% Upgrade) or 1.5 A (167%Upgrade)
  • Short Circuit Protection Current: up to 12 A
  • Battery Pack Size (maximum): 56.5 mm Wide * 18.6 mm High * 69.0 mm Long
  • Weight: 139 g (average)
  • Connector: 2.5 mm pitch 2-circuit JST XH-2
  • Wire: Red/Black, UL 1007,  22AWG, 80 degC, 300V, VW-1
