Battery Replacement SurgiTel Odyssey Analog Battery Pack by innoVolta IVM361866-2S268PM Made in USA

Applications:

Replacement Battery for Surgitel Odyssey Analog Battery Pack

Meet Highly Safe Medical Industrial Requirements:

Selected Medical Grade, LOW-HEAT, NMC Power Cells
In-Cell Construction by Thermal Runaway Safer Material up to 210 Degree C
Individual Cell Carries UL 1642 and RoHS Certificates
Build-in Reinforced Insulation between Cells
Build-in Industrial Grade PCM (Protections: Short Circuit, Over-Charge, Over-Discharge)
Never worry about an explosion owing to an accidental short circuit or a human mishandling

High Performance:

7.4 V 2,600 mAh (100% Run Time), or
7.4 V 3,000 mAh (115% Run Time)
Short Circuit Protection Current (up to 8 A)

Ultra Long Life:

Real-Time Tested Cycle Life (individual cells): Over 1,000 Deep Cycles
Excellent Cell Matching ACIR @1 kHz < 2 mOhm/bin
Excellent Cell Matching Capacity < 20 mAh/bin

Convenience:

Assembled with 2.5 mm pitch 2-circuit Molex 5264 connector housing and Molex 5263 crimp terminal
Avoiding any accidental inverse polarity of power connection because Molex 5264 connector is polarized.
2″ long flexible wires rated UL 1007, 22AWG, 80 degC, 300V, VW-1

Categories: Custom Batteries for Various Applictions, Medical Replacement Batteries Tags: Replacement Battery, SurgiTel, Eclipse battery pack EHL65, Odyssey Analog, 7.4V 2600mAh, Li-Ion, Battery

Description
Additional information

Description

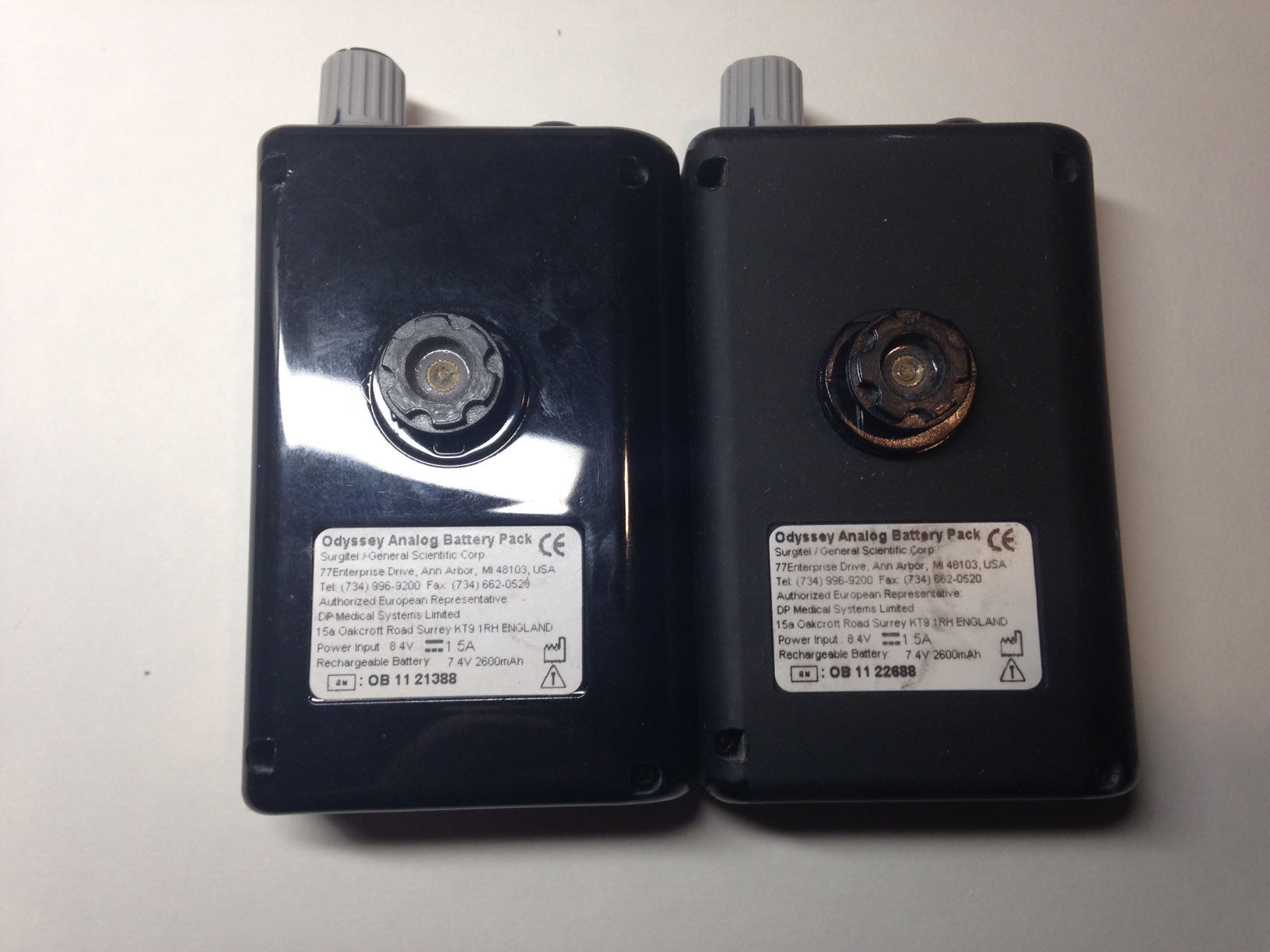

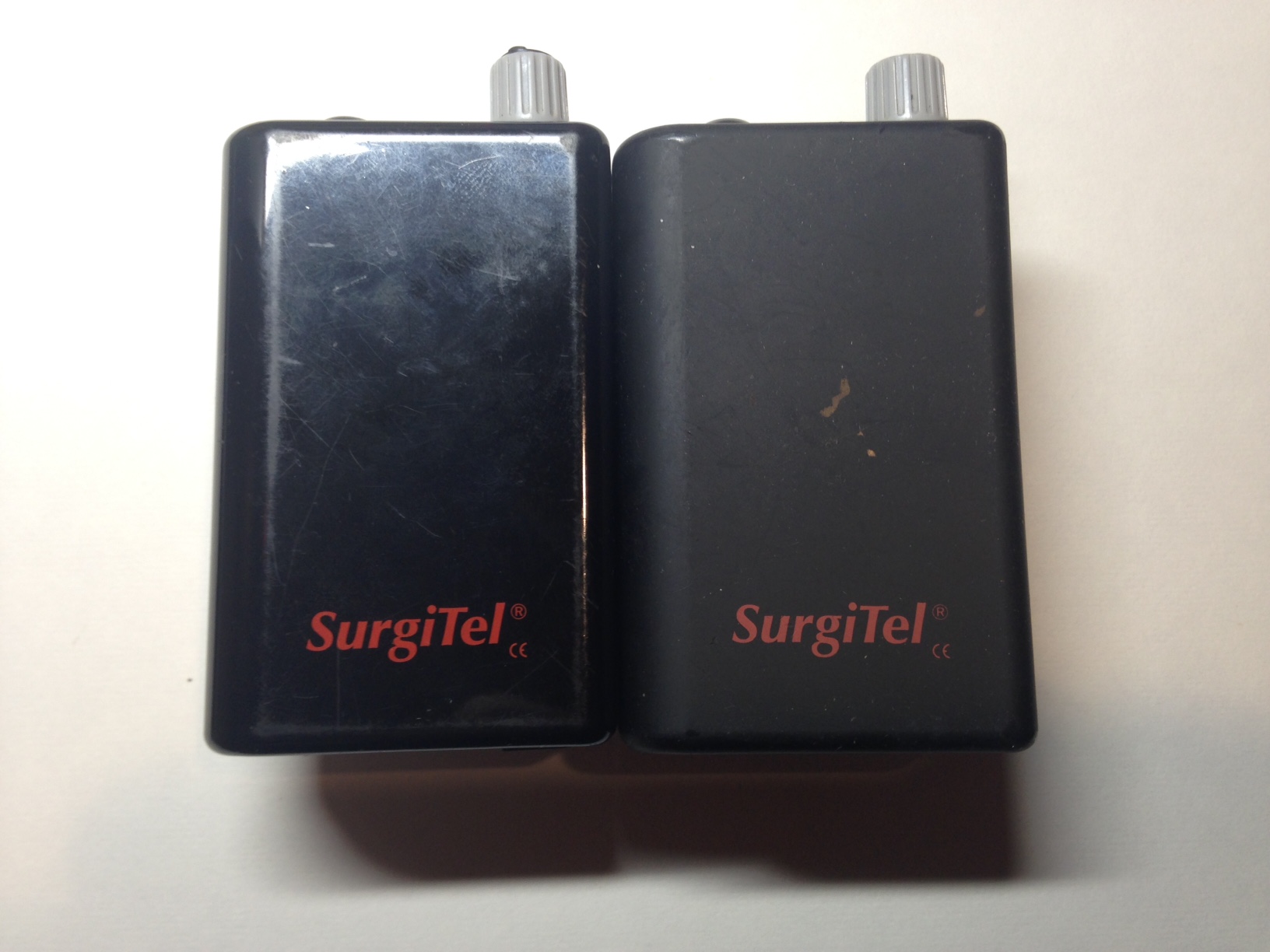

This is the battery replacement pack dedicated to replace the aged original battery for SurgiTel Loupe Headlight (Odyssey Analog Battery Pack)

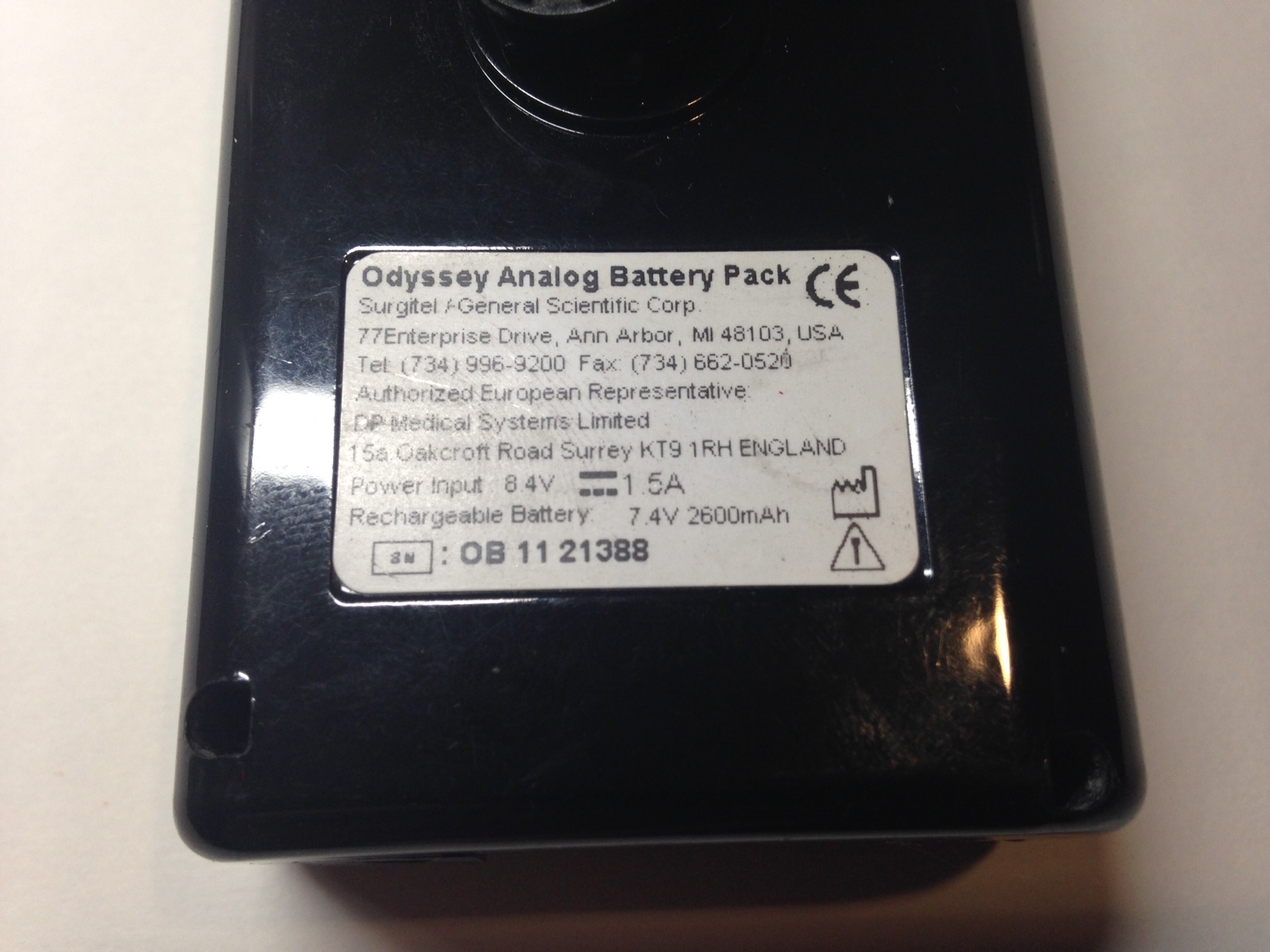

Note: The original battery is rated as 7.4 V 2,600 mAh

If your unit is Eclipse EHL65 battery pack for SurgiTel micro LED, please visit

https://www.innovolta.com/product/battery-replacement-surgitel-eclipse-battery-pack-ehl65-by-innovolta-ivm361866-2s26cpm-made-in-usa/

Please contact us if you own a different Loupe Headlight and can’t find a compatible battery for replacement!

To know about innoVolta’s product capability, please visit

https://www.innovolta.com/about-us/

Specifications

Brand: innoVolta USA

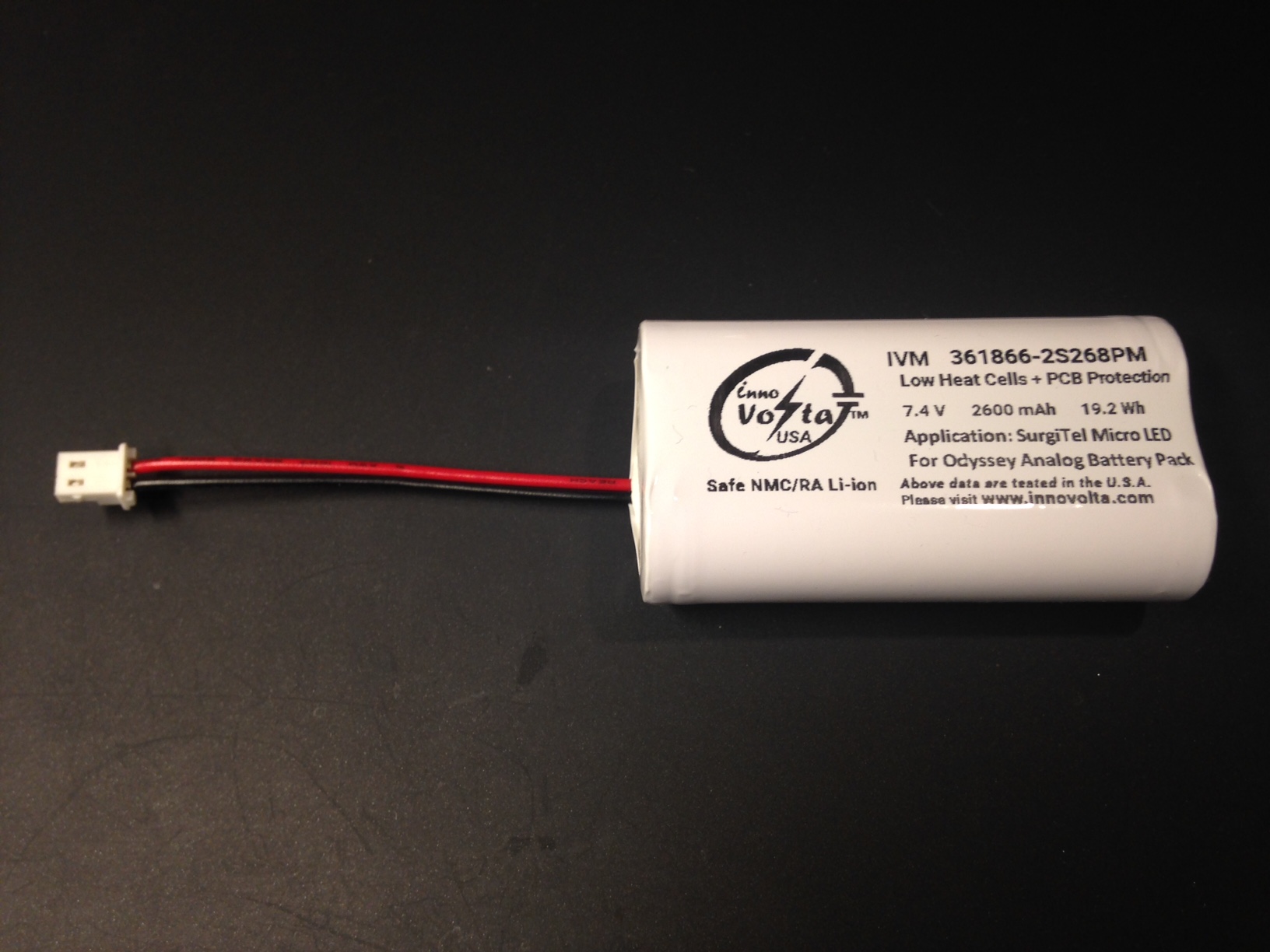

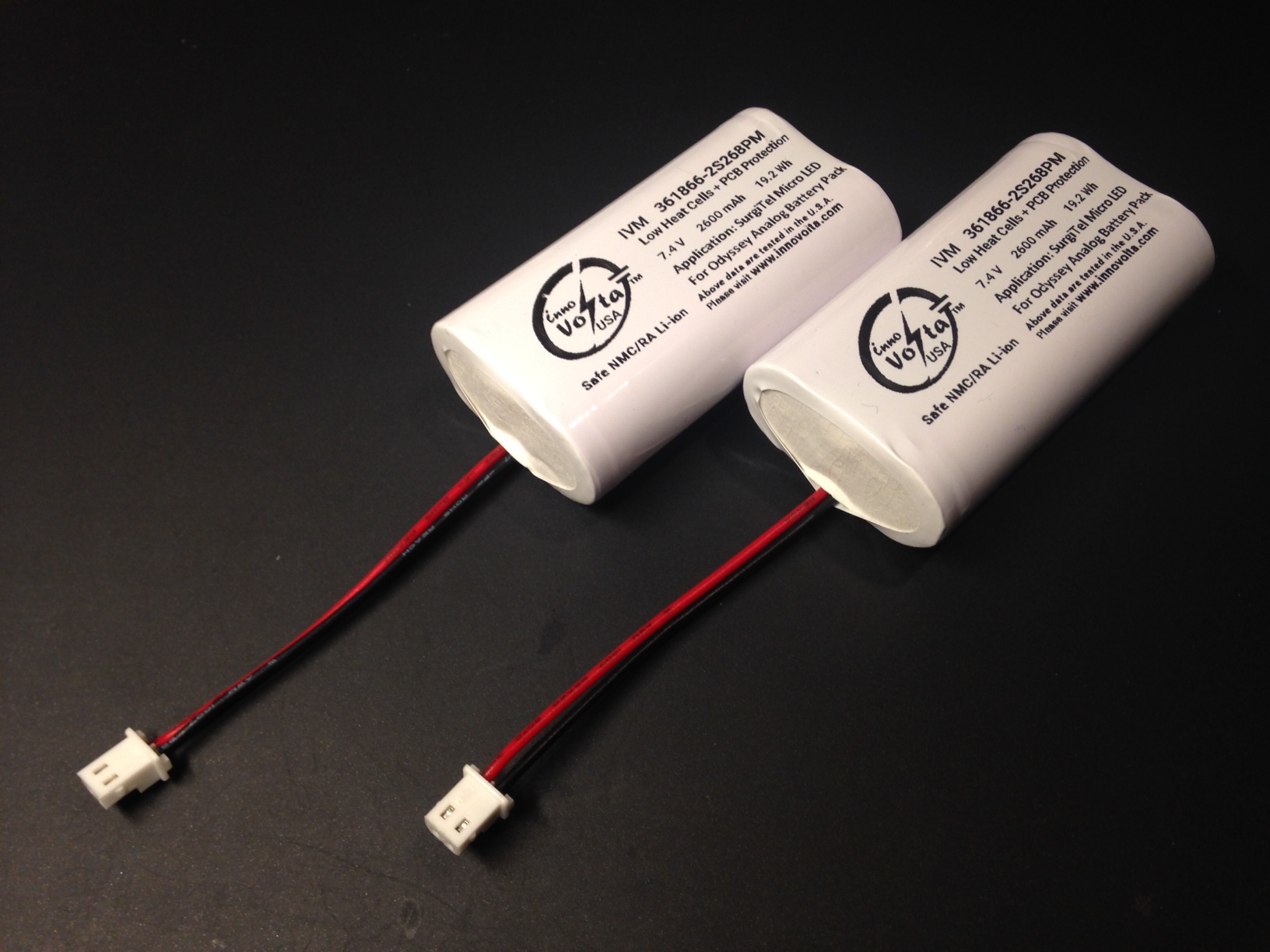

Standard Model: IVM361866-2S268PM (100% Run Time)

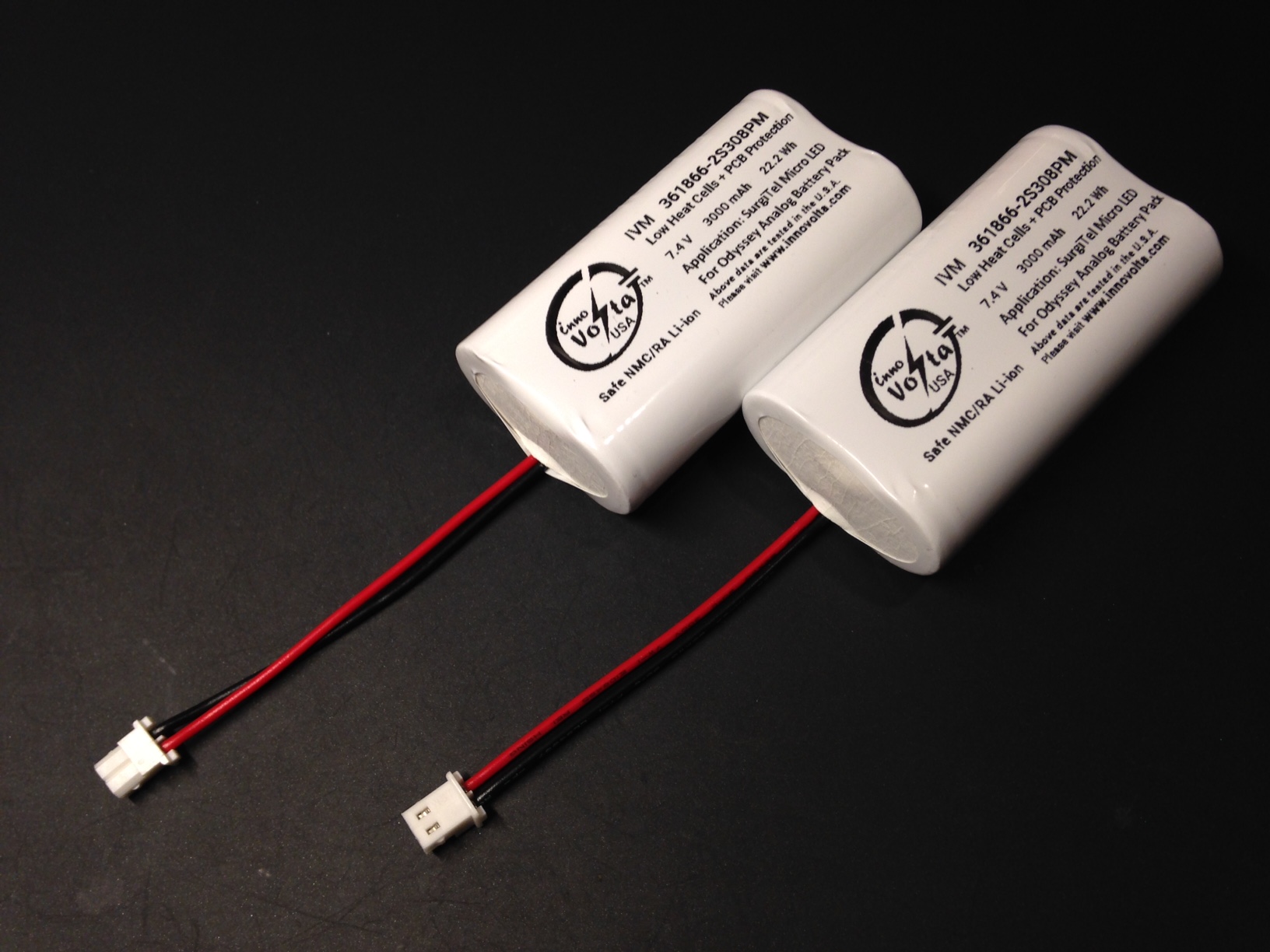

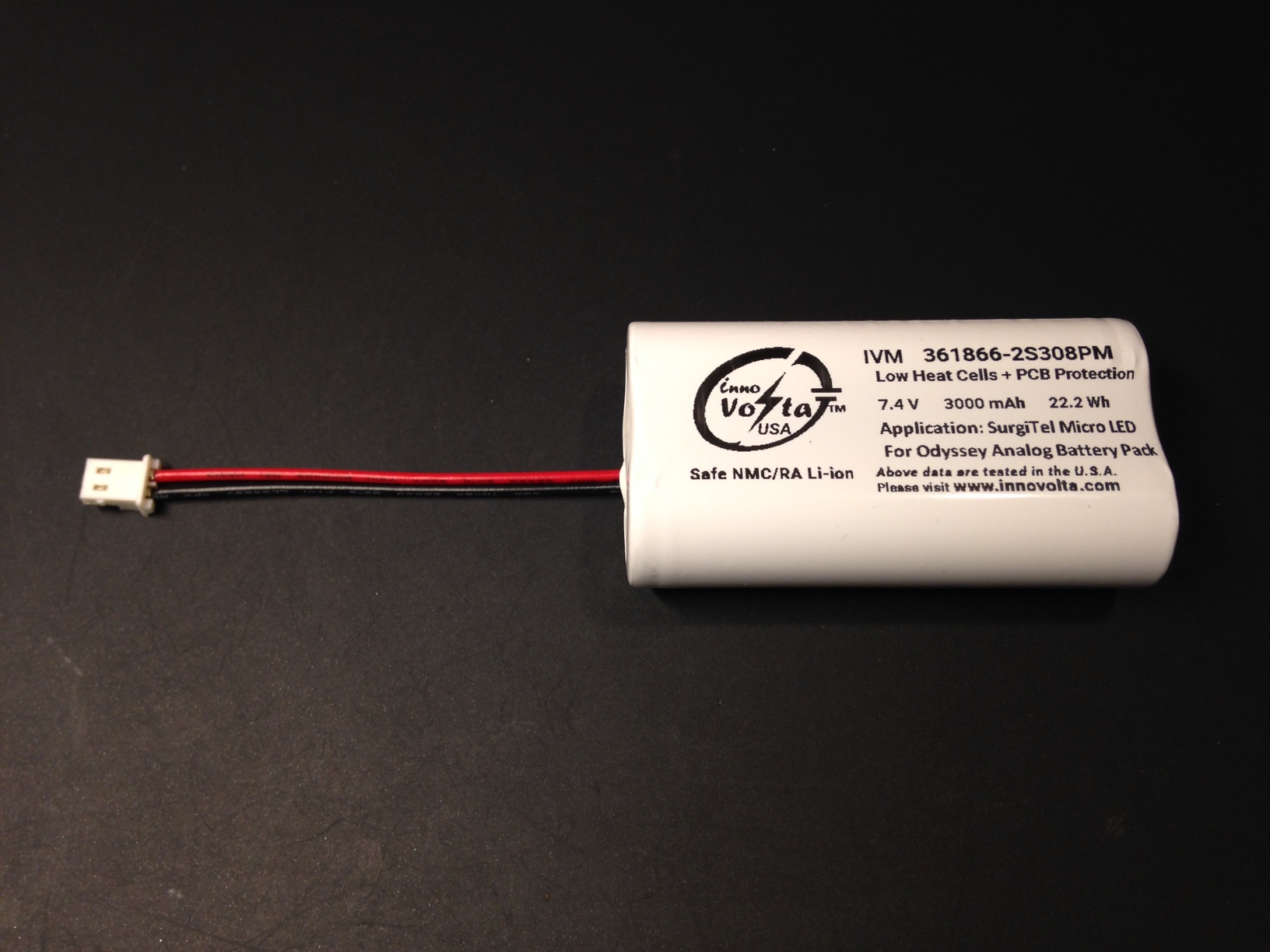

Upgrade Model: IVM361866-2S308PM (115% Run Time)
Capacity: 2,600 mAh (Standard) or 3,000 mAh (Upgrade)
Energy: 19.2 Wh (Standard) or 22.2 Wh (Upgrade)
Nominal Voltage: 7.4 V
Charge Current: 1.3 A (Standard) or 1.5 A (Upgrade)
Short Circuit Protection Current: up to 8 A
Battery Pack Size (maximum): 37.0 mm Wide * 19.5 mm High * 66.5 mm Long
Weight: 91.7 g (average)
Connector: 2.5 mm pitch 2-circuit Molex 5264 connector housing with Molex 5263 crimp terminal
Wire: Red/Black, 2″ long, UL 1007, 22AWG, 80 degC, 300V, VW-1

Additional information

Weight	0.25 lbs
